NIO 51

Industrial Mesh Wi-Fi Serial/Ethernet Device Gateway

Main Feature
  • Support EZ Mesh and Wi-Fi client router operation mode
  • Selectable 2.4GHz/5GHz, 2x2 MIMO
  • Support serial to Ethernet' serial to Wi-Fi and Ethernet to Wi-Fi
  • Support Modbus/RTU to Modbus/TCP
  • Built-in offline port buffer with 20MB of storage
  • High immunity to Surge, ESD & EFT protection
  • Up to 921.6Kbps baud rate for RS-232/422/485 transmissions
  • Web-based configuration
  • Support serial data log
  • Support nCare remote configuration
  • Wide DC input range with 12V-48V
  • Wide operation temperature from -40°C~70°C

NIO 51 brings the wireless connectivity from serial devices or Ethernet devices perfectly to Wi-Fi Mesh backbone in smart factories. Thanks for the Wi-Fi Mesh technology, every device connecting to NIO 51 can easily keep multiple Wi-Fi connecting paths to either IWF310 EZ Mesh backbone or neighbor NIO51 devices to communicate with the control center even the devices are in moving status such as AGV application in factories.

NIO 51 provides flexible conversion between Modbus RTU to Modbus TCP protocols as well as serial to Ethernet/Wi-Fi interfaces within one box. It’s also equipped with high immunity to EMC high level protection in Surge, ESD and EFT, wide operation temperature and redundant power so people do not need to concern about impact from harsh environment. Optional mPCIe port can be used as 3G/LTE WAN connection in the mobility applications or the environments where no Wi-Fi coverage is possible.

NIO 51 fills the communication gap between legacy edge nodes to the control center, enabling field data to be harnessed for manufacturing process optimization, asset management, and preventive maintenance.

Wi-Fi Radio IEEE802.11a/b/g/n , MIMO 2 x 2
Serial Interface RS232/422/485 with isolation
- Data bits: 8
- Stop bits: 1
- Parity: none, even, odd
- Baud rate: 300bps~921.6Kbps
Ethernet Interface 10/100 Mbps
Power Requirements Input voltage: 12~48VDC, 2-pin removable terminal block
Input current: 1.67A@12VDC
LED Indicator 1 x Power/status
1 x Serial status
3 x RSSI indicator
1 x Wi-Fi 2.4/5GHz indicator
1 x Link/Act indicator
1 x Extension module
Factory Default/Reset Button Press reset button 10 seconds for factory default
Connector type DC input: Phoenix contact terminal block
Ethernet: RJ-45 connector
Serial signal: DB9
Wi-Fi Operating Mode EZ Mesh
Client router
Wi-Fi Security (Client Mode) WEP (64/128)
WPA/WPA2 mixed
WPA2-personal (PSK+CCMP/AES), WPA2-enterprise
Protocol Modbus TCP
Modbus RTU
Transparent mode for Serial to Wi-Fi/Ethernet
Serial Port Characteristics Flow control: XON/XOFF, RTS/CTS
Serial data log: 64KB
Offline port buffering: 20MB
Min. concurrent TCP client number: 10
Software Watchdog Yes

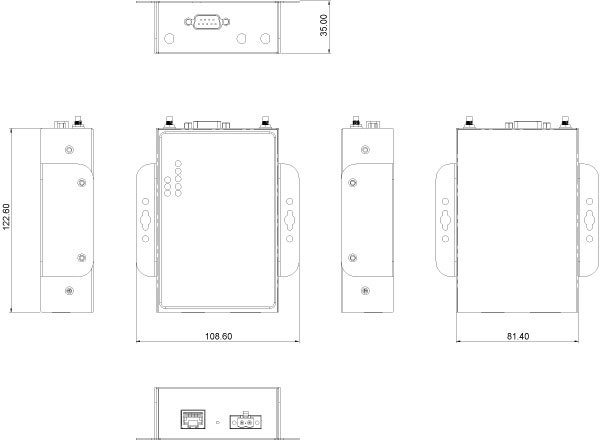

Dimension 81.4 mm x 122.6 mm x 35 mm
Weight 450g
Mounting Wall mounting
DIN mounting
Construction SGCC chassis with fanless design
Certification EMI: FCC, CE Class A
RF
- FCC: Part 15C
- CE: EN300328, EN301893
Safety
- EN 62368-1
EMC
- EN301 489-1/17, FCC Part 15 subpart B, EN55032/55024
- IEC61000-4-2: level 4
- EC61000-4-4: level 4
- EC61000-4-5 Surge: level 3
Environment Operating temp: -40°C to 70°C
Storage temp: -40°C to 85°C
Relative humidity: operating: 5%~95%, non-condensing
RoHS compliant
Vibration
- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Shock: 50G, half sine, 11ms, IEC60068-27
  • NIO 51 (P/N: 10T00005101X0)
  • Industrial Mesh Wi-Fi Serial/Ethernet device gateway
