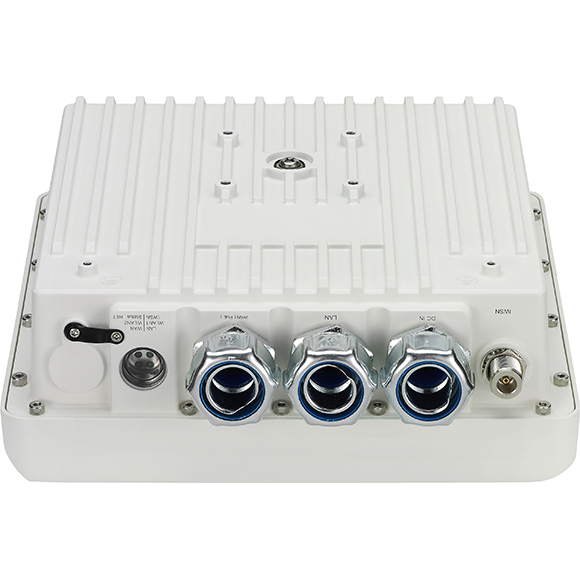

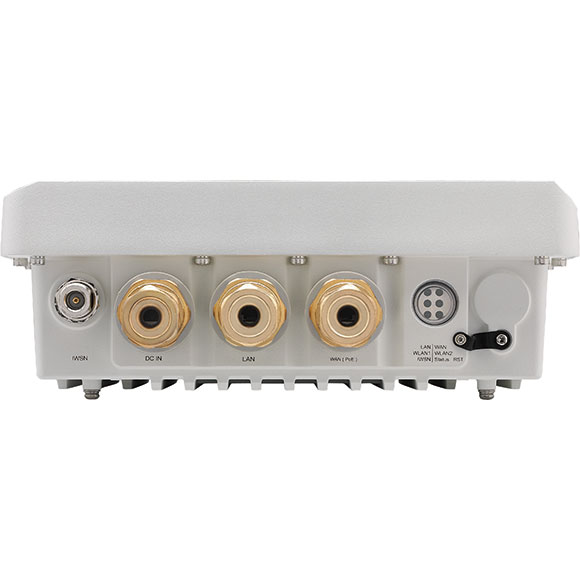

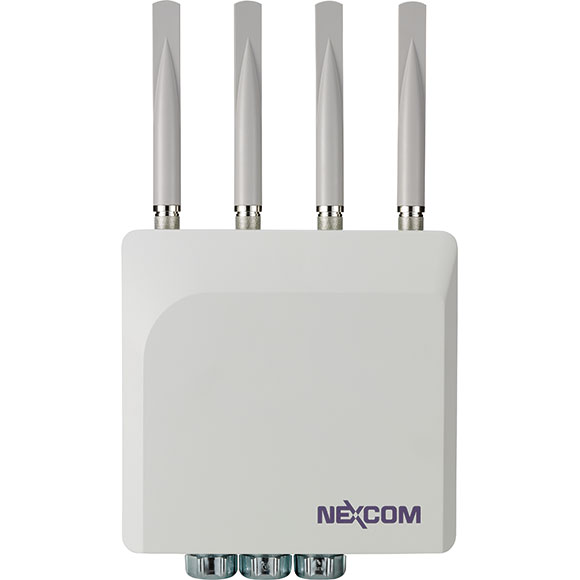

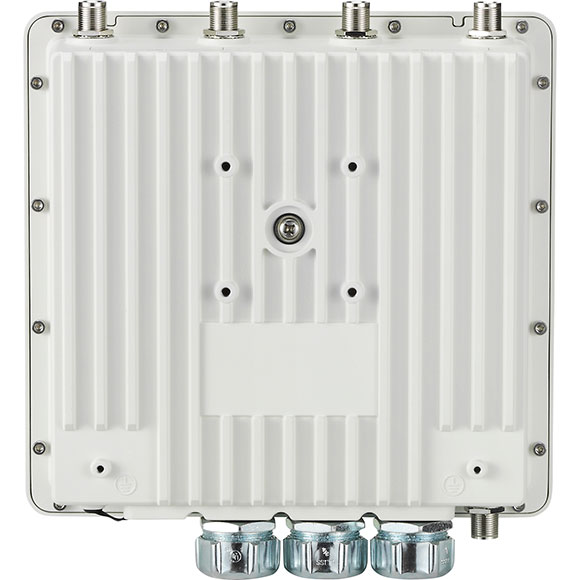

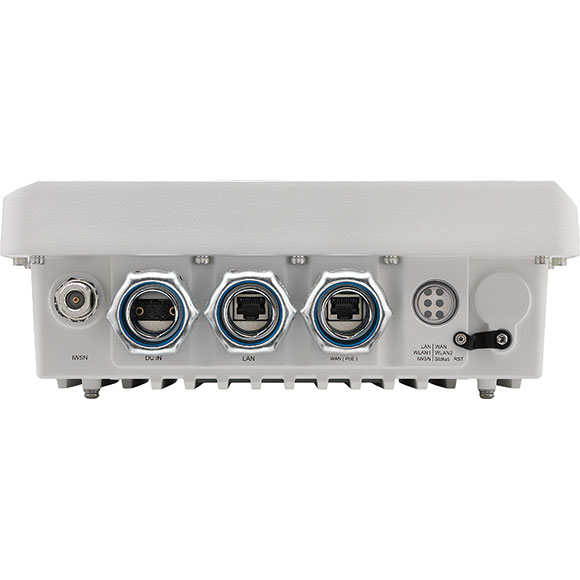

NIO 200 WMR

Anti-explosive IP67 Wi-Fi Mesh Router

Main Feature
  • Anti-explosive Wi-Fi Mesh backbone for HazLoc environment.
  • Multiple operation mode ( Mesh/AP/ Client mode ) meets diversified deployment.
  • Heavy industrial grade with Level-4 EMC immunity to Surge, ESD and EFT plus -40 ~ 75 °C operation temperature.
  • Dual power redundancy (DC and PoE)
  • High throughput performance ideally for video surveillance and data transmission simultaneously.
  • Hybrid Wi-Fi Mesh + AP for backbone and access concurrently.
  • Easy management with nCare support.

NEXCOM’s NIO200WMR is a unique anti-explosive (CID2 & ATEX certified) Wi-Fi routers which support Mesh, AP and Client modes. This is dedicated design for heavy industrial HazLoc environment. With the Wi-Fi Mesh technology, NIO200WMR provides most reliable wireless connectivity with intelligent multi-path mechanism. It establishes robust access and backbone infrastructure. To meet the requirement of critical environment, NIO200WMR equips with wide temperature (-40 ~ 75 °C), IP67 protection, highest standard level-4 EMC immunity, CID2 and ATEX anti-explosive capability.

For security consideration, NIO200WMR gives user versatile selection of different encryption (pre-shared key and Enterprise) black list and white list protection mechanism. Together with nCare, I4.0 network manager, NIO200WMR can be easily managed. Thus, effectively reduce the cost for network maintenance and management effort.

Wireless Radio IEEE802.11a/n x 2, MIMO 2 x 2
Wi-Fi Frequency Ranges USA: 5.15~5.25 GHz, 5.725~5.825 GHz
Europe: 5.15~5.35 GHz, 5.47~5.725 GHz
RF Output Power: IEEE 802.11a 802.11a
- 28 dBm with 2 antennas
802.11n (HT20)
- 27 dBm with 2 antennas
802.11n (HT40)
- 27 dBm with 2 antennas
Hardware Compliant with :
- IEEE802.3 / 802.3u
- Hardware based 10/100/1000, full/half, flow control auto negotiation
Push buttons: 1 x reset/restore to default
LED:
- 2 X Ethernet
- 2 X 11an Radio
- 1 X IWSN Radio
- 1 X Power/Status
Antenna port:
N-Type: 5X N-type connector (Note: IWSN feature is not supported in NIO200WMR model)
Compliance IEC 60950, 2nd Edition
EN 60950, 2nd Edition
IEC 61000-4-2 Level 4 ESD Immunity
IEC 61000-4-4 Level 4 Electrical Fast Transient Burst Immunity
IEC 61000-4-5 Level 4 Surge Immunity
Physical and Power 12~48 VDC
PoE ( Standard PoE 802.3at )
Wall/VESA/Pole mountable ( Pole mount kit is an optional accessory )

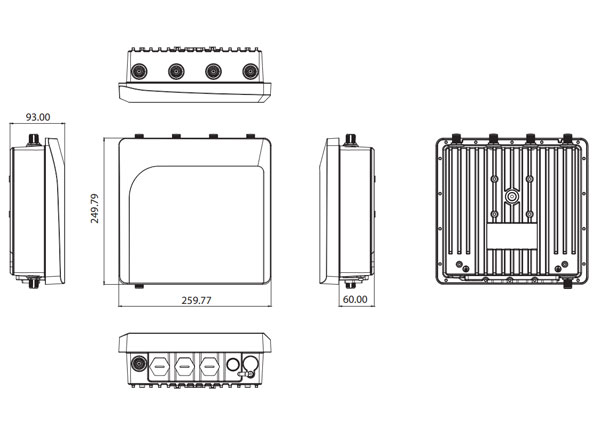

Dimension: 256mm x 226mm x 91mm
Weight: 2.5Kg
Wi-Fi Security Open
WEP
WAP/WPA2 Mixed
WPA2-personal (PSK+CCMP/AES)
WPA EAP
WPA2 EAP
Hidden ESSID support
MAC address filtering (MAC ACL)
Station isolation
Environment Protection Operating temperature: -40~75°C (altitude : up to 3000m
Storage temperature: -40~85°C
Humidity: 0% to 95% maximum (Non-condensing)
Vibration: random 0.3g
System Management Web-based GUI
SNMP V1/V2c/V3
nCare network management
Event log
SYSLOG
Configuration backup and restore
Restore factory default setting
Remote firmware upgrade
Certification UL 60950-1; 60950-22, 2nd Edition
Radio approvals
FCC Part 15.247, 15.407
EN 300 328
EN 301 893
EMC
FCC part 15.107, 15.109
EN 301 489-1, -17
Anti-Explosive Certification CID2: Groups A, B, C, D, T4
ATEX: Class I, Zone 2; Ex nA IIC, T4
Built-in Servers & Client Interfaces to Other Services SNMP v1/v2c/v3 client
  • NIO200WMR-US NIO200 Wi-Fi Mesh Router
  • P/N: 10T00020013X0
Accessory ordering information
  • P/N: 5040210012X00
  • SIMPLE WALL MOUNT KIT VER: A SIN SUPER CIRCLE
  • P/N: 5040410110X00
  • POLE MOUNT FOR NIO200 VER: A SIN SUPER CIRCLE 92x228x90mm SECC=2.0t WHITE
  • P/N: 7A00000066X00
  • Antenna arrester, DC-6 GHz N-MALE TO N-FEMALE
  • P/N: 603ANT0012X00
  • Dual Polarization-Directional Antenna for 5 GHz 20dBi
  • P/N: 603ANT0009X00
  • Directional Antenna 2300~2700 MHz 16~17 dBi
  • P/N: 603ANT0010X00
  • Directional Sector Antenna 2400~2500 MHz 14±0.5 dBi
  • P/N: 603ANT0013X00
  • Directional Sector Antenna 5150~5875 MHz 15±0.5 dBi
