EBC2A0

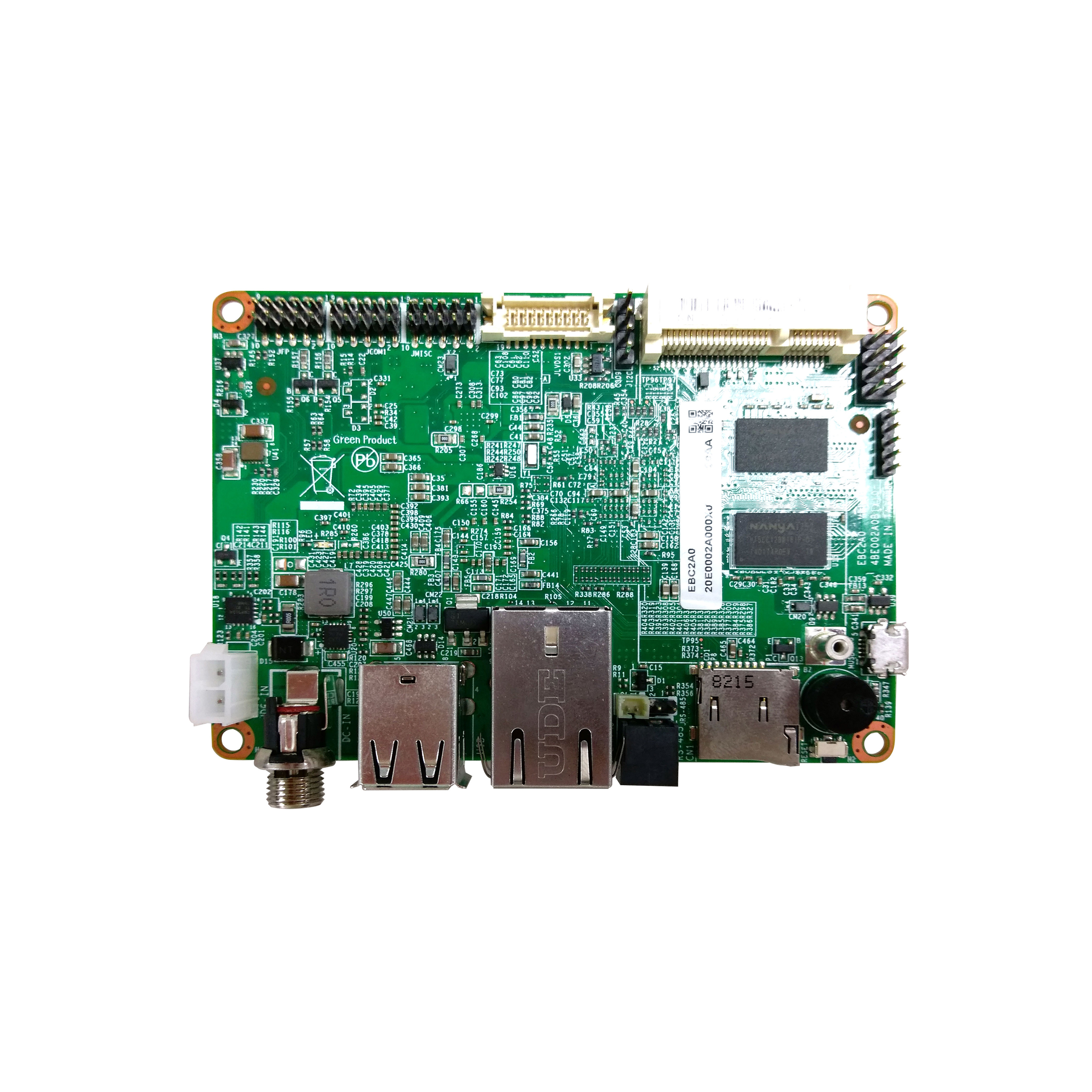

2.5” NXP i.MX6 CPU Board
NXP i.mx6 Solution

Main Feature
  • Industrial & jumper-less design
  • Power on/off test over 100 times before shipment
  • NXP i.MX6 DualLite 1.0 GHz Cortex-A9
  • On-board DDR3 1GB
  • 1 x 18/24-bit LVDS output
  • 1 x HDMI 1920x1080
  • 1 x 10/100/1000 Mbps Ethernet
  • 3 x USB 2.0 (2 x external + 1 x internal)
  • 1 x RS-232 (2-wire)
  • 1 x RS-485 (3.5mm terminal block)
  • 1 x CAN
  • 1 x mini-PCIe for WLAN/WWAN support

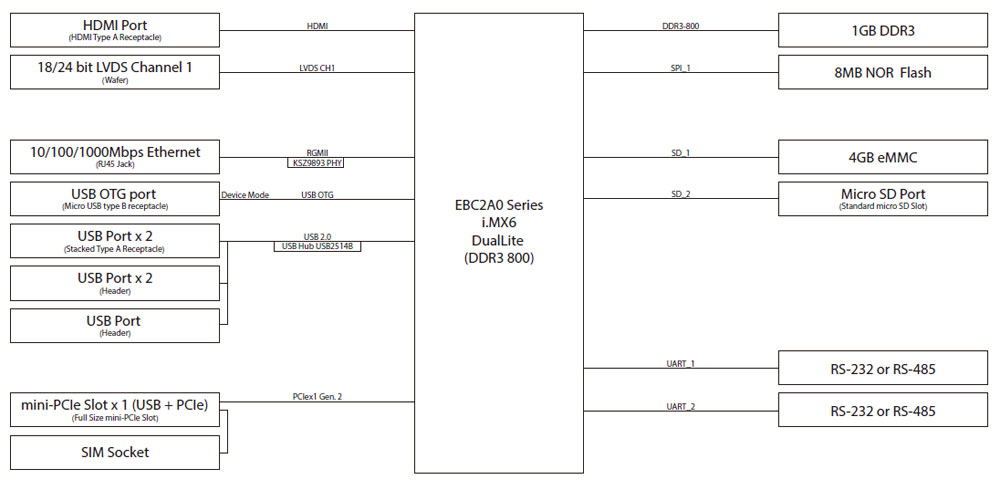

CPU NXP i.MX6 DualLite 1.0 GHz Cortex-A9
System Memory Onboard 1GB DDR3-800 SDRAM
Flash 8MB NOR Flash
HDMI 1 x HDMI 1920x1080
LVDS 1 x 18/24 bit LVDS
Watchdog 1~256 level (0.5 second/level)
LAN 1 x 10/100/1000 Mbps (RJ45 with LED x 2)
USB 1 x USB (miscellaneous header)
1 x 2 ports USB 2.0 (double-deck connector)
Serial Port 1 x RS-232 (2-wire) header
1 x RS-485 (3.5mm terminal block)
CAN 1 x CAN (miscellaneous header)
SD 1 x standard SD slot
PCIe 1 x full size mini PCIe (PCIe & USB signal)
SIM 1 x SIM card header
Yocto Yocto 1.6.2
WEC Windows Embedded Compact 7 (customization)
DC-input 5V (4.75V~5.25V)
Control Power on by DC attached or via power button.
Consumption ~3W
Operating Temperature 0°C ~ 70°C
Operating Humidity 5%~95% Relative Humidity, Non-condensing
Dimensions PICO-ITX (100 x 72 mm)
Certification CE/FCC Class B

Ordering Information

Part No. Description
EBC-2A0 2.5" P-ITX, i.MX6DL 1GHz, DDR3 1GB, mPCIe, HDMI/LAN/3xUSB/RS-232/RS-485/CAN/5V

Packing List

Part No. Description Qty.
EBC-2A0 2.5" P-ITX, i.MX6DL 1GHz, DDR3 1GB, mPCIe, HDMI/LAN/3xUSB/RS-232/RS-485/CAN/5V 1

Optional Accessories

Part No. Description
7400025002X00 Adapter 25W, 5V/5A DC output (100~240 VAC input)
60233POW18X00 Power adapter cord 180cm (EU)
60233POW17X00 Power adapter cord 180cm (US)
8GB MLC SD card with Yocto 1.6.2 for EBC2A0
Date Description Version OS Download
2018-08-31 Datasheet - Windows 0.84MB
2018-08-31 Manual - Windows 2.07MB
